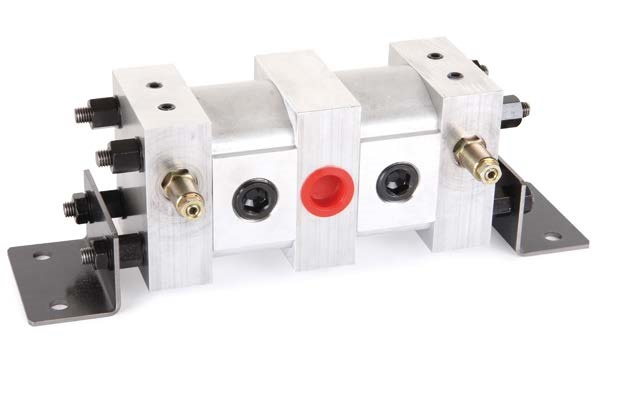

Synchronous Flow Divider with relief valve function for LCH Precision Technology Co., Ltd

Inquiry

symbol

Feature:

Pressure max:210kgf/cm
Qmax:4cc/rev~35cc/rev(Single Motor)
Stations: 02 stations ~ 08 stations
one inlet port and two outlet port
Synchronous Flow Divider is split a single hydraulic line into two or more identical flow paths. flow can be vary in each path if the resistance in all the branches is not identical.
Synchronous Flow Divider, DFMN series flow divider splits flow and compensates for pressure differences in most cases. A flow divider can split flow equally, unequally, and into more than two paths. One design maintains a constant flow for one outlet and directs any excess flow to a second outlet.
by adding check valves when using a spool-type flow divider to synchronize cylinders could pass reverse flow. However, when the cylinders reverse, there is no synchronization with a spool-type flow divider. see our hydraulic pump catalogue to find all types of Synchronous Flow Divider.

How to order:

Description of each model code:

Model Number: DFMN-302A-11-MR

	Model code	Descriptions
1	DFMN-3	Series Number Synchronous flow divider
2	02A	Numbers of stations 02A:2 stations 03A:3 stations 04A:4 stations 05A:5 stations 06A:6 stations 07A:7 stations
3	11	Displacement 4:4cc/rev 6:6cc/rev 8:8.4cc/rev 11:11cc/rev 13:13cc/rev 14:4.3cc/rev 17:16.5cc/rev 19:19.2cc/rev 23:23 cc/rev 25:25cc/rev 28:28cc/rev 30:30cc/rev 35:35cc/rev
4	M MR	Synchronous flow divider With relief vlave

Specification Table

Model DFM-304A Series

Model DFMN-302A Series

Model DFMN-302A-MOR Series

Model DFMN-102A-M Series
