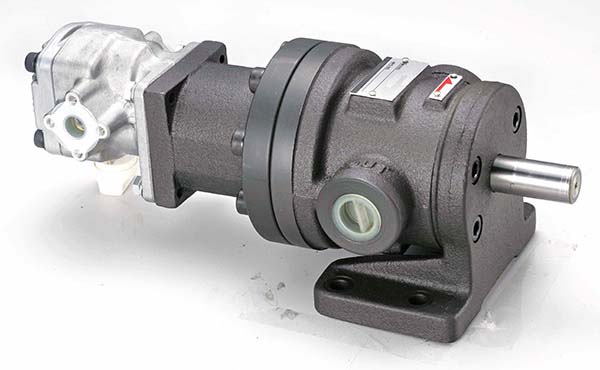

Fixed Double Type Vane Pump 50T+ PA series
Home > Hydraulic vane pump > Fixed Double Type Vane Pump 50T+; 150T+ series > Fixed Double Type Vane Pump 50T+ PA series
Model 50T+PV2R1; 50T; PA; PB Series
Feature:- Fixed Double Type Vane Pump provide system desing of high flow,low noise level and high volumn efficiency.
- commercial hydraulic pump can be matched with a low flow gear pump to build into a high-low system and have a function of saving horse power.
- Engine driven hydraulic pump requires only one single shaft electric motor.
- Easy the installation work for building a high-low pressure circuit system of Fixed Double Type Vane Pump.
Description of each model code:
Model Number: 50T-12-F-R-R-PA-X
|
|
Model code |
Descriptions |
|
|
1- |
50 |
Series Number Fixed Double Type Vane Pumps |
|
|
2- |
T |
Connecting Type T: Piping Type F: Flange Type |
|
|
3- |
12 |
Delivery Capacity (c.c/rev) 50T:12, 14, 17, 20, 23, 26, 30, 36, 39, 43 |
|
|
4- |
F |
Mounting Style F: Flange Mounting L: Lug Mounting |
|
|
5- |
R |
Rotating direction R: CW L: CCW |
|
|
6- |
PA |
Cover End Pump PV2R1:6.8.11.14.17.19.23.25.31(c.c/rev) 50T:12.14.17.20.23.26.30.36.39.43(c.c/rev) PA:1.07-10.5(c.c/rev) PB:8-31.8(c.c/rev) |
|
|
7- |
X |
(50T) X: Shaft
None: Shaft |
|
|
Model No. |
Delivery capacity (cc/rev) |
Allowable rotation speed (r.p.m) |
Max. Pressure kgf/cm2 |
Weight (kg) |
|||||
|
Speed of rotation (r.p.m) |
Lug type |
Flange type |
|||||||
|
1000 |
1200 |
1500 |
1800 |
Max. |
Min. |
||||
|
50T-07 |
- |
9.0 |
11.2 |
13.5 |
1800 |
1200 |
70 |
10.5 |
9.5 |
|
50T-12 |
12 |
14.4 |
18.0 |
21.6 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-14 |
14.6 |
17.5 |
21.7 |
26.1 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-17 |
17 |
20.3 |
25.5 |
31.5 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-20 |
20.1 |
24.1 |
30.2 |
36. |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-23 |
23 |
27.6 |
34.5 |
41.4 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-26 |
26.2 |
31.4 |
39.3 |
47.2 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-30 |
30 |
36 |
44.5 |
53 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-36 |
36.2 |
43.4 |
54.3 |
64 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T-39 |
39 |
46.5 |
58.5 |
70 |
1800 |
950 |
70 |
10.5 |
9.5 |
|
50T--43 |
43 |
51.6 |
- |
- |
1200 |
950 |
70 |
10.5 |
9.5 |
