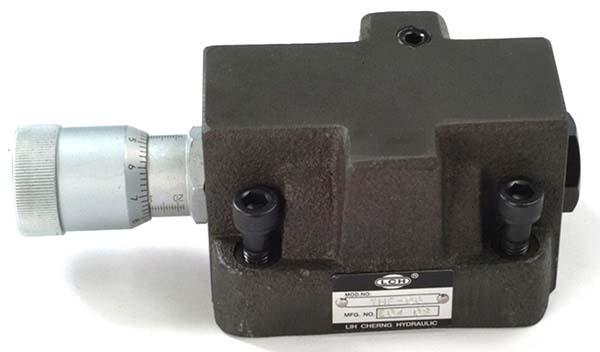

Solenoid Operated Flow Controlled Valve
Home > Flow control valve > Solenoid Operated Flow Controlled Valve
Model THF-06
Feature:- Solenoid Operated Flow Controlled Valve is used in hydraulic, Cylinder and Hydraulic Pump motor etc., which need speed control. Since those are being with pressure compensation device, the flow rate will not effected due to pressure variation at in/out vent, especially the flow-noise of throttle valve vent can be eliminated completely, the inlet pressure can be traced pressure loading and the pressure lose can be reduced, saved electricity and prohibited oil temp elevating in the small hydraulic system.
Description of each model code:
Model Number: THF-06
|
|
Model code |
Descriptions |
|
1 |
THF |
Series Number Flow Controlled Valves |
|
Type of Mounting G: Gasket type |
||
|
2 |
06 |
Port Size 06:3/4” 10:1-1/4” |
|
3 |
10 |
Design Number |
Specification Table
|
Model Number |
Max. Pressure kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt size |
|||||
|
06 size |
10 size |
06 size |
10 size |
06 size |
10 size |
||||
|
SF-06 |
SF-10 |
250 |
120 |
240 |
5.5 |
9 |
M10x45x4pcs |
M12x45x4pcs |
|
|
SFD-06 |
SFD-10 |
6 |
9 |
||||||
|
SDF-06 |
SDF-10 |
5.5 |
9 |
||||||
|
SD-06 |
SD-10 |
5.1 |
8.1 |
||||||
|
THF-06 |
THF-10 |
5.5 |
8.7 |
||||||
