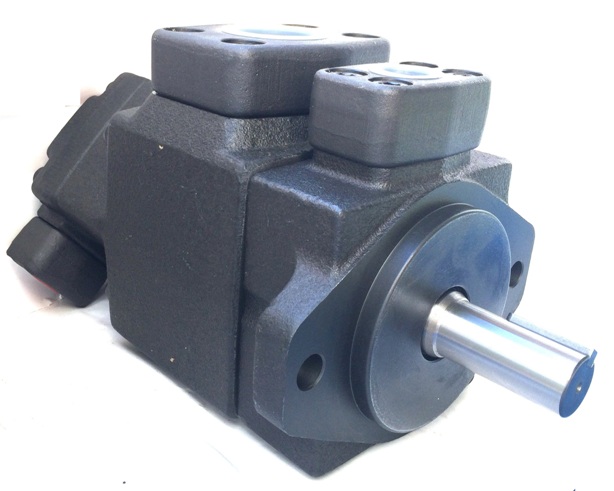

High Pressure Fixed Displacement Double Vane Pump for LCH Precision Technology Co., Ltd

Download Inquiry

Feature:

High Pressure Fixed Displacement Double Vane Pump are designed for low noise level and high volumn efficiency.
High Pressure Fixed Displacement Double Vane Pump bring the feature of smooth running high stability and durability.
hydraulic pump symbol of High Pressure Fixed Displacement Double Vane Pump of Inlet resistances are particularly considered in input-port design.
hydraulic pump design of High Pressure Fixed Displacement Double Vane Pump Maximum working pressure up to 210 kgf/cm²

How to order:

Description of each model code:

Model Number: PV2R14-6-153-F-RAAA

	Model code	Descriptions
1-	RV2R13	Series Number High Pressure Fixed displacement double vane Pumps 1:PV2R1 2:PV2R2 3:PV2R3 4:PV2R4
2-	6	Normal Delivery Capacity-cover end (c.c/rev) PV2R1: 6,8,11,14,17,19,23,25,31 PV2R2:26,33,38,41,47,53,59,65 PV2R3:60,66,76,82,88,94,108,116,126 PV2R4: 136, 153, 184, 201, 237
3-	153	Normal Delivery Capacity-shaft end (c.c/rev) PV2R1: 6,8,11,14,17,19,23,25,31 PV2R2:26,33,38,41,47,53,59,65 PV2R3:60,66,76,82,88,94,108,116,126 PV2R4: 136, 153, 184, 201, 237
4-	F	Mounting Style F: Flange Mounting L: Lug Mounting
5-	R	Rotating direction R: CW L: CCW
6-	A	2R1 Discharge portion(view from shaft end) A: Upward-normal B: Downward R: Right hand L: Left hand
7-	A	2R2 Discharge portion(view from shaft end) A: Upward-normal B: Downward R: Right hand L: Left hand
8-	A	Suction portion(view from shaft end) A: Upward-normal B: Downward R: Right hand L: Left hand

Specification Table

Model PV2R12 Series

Model PV2R13 Series
