Feature:

Manual Operated Valve of hydraulic liquid is designed for shifting the spool position and change the direction of oil flow by manually.
Manual Operated Valve is a simple and economical manually operated directional valve.
There are two types of uses of hydraulics manually operated directional valves. One is spring centered and another one is steel ball centered. As per customers’ requirements and applications to choose suitable type for usage
Manual Operated Valve may be used to manually shift the spool position and change the direction of oil flow.

How to order:

Description of each model code:

Model Number: DMT-06-3-C-2-10

	Model code	Descriptions
1-	DM	Series Number Cam Operated Directional Valves
2-	T	Type of Mounting T: Thread type G: Gasket type
3-	06	Port Size 02:1/4” 03:3/8”
4-	3	2: Two pos. 3: Three pos.
5-	C	C: Spring centered D: Ball centered

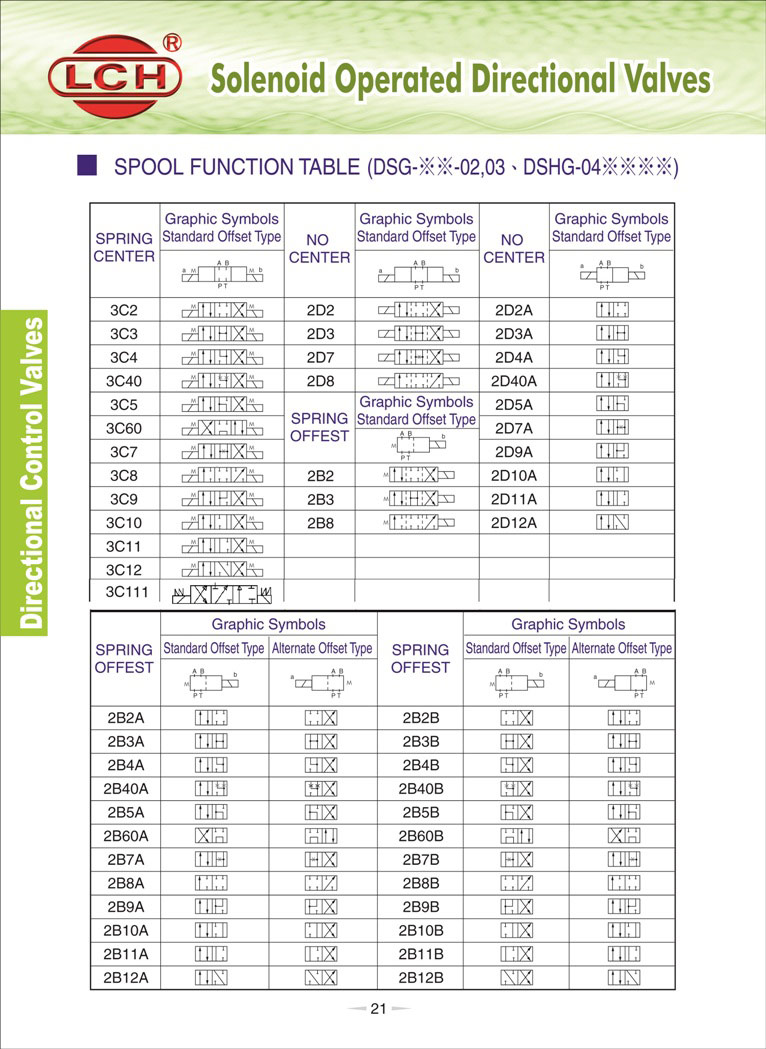

6	2		Spool Type For details refer to spool type on page21
7	10		Design Number

Specification Table

Model DMG-02

Model DMG-03

Model DMT-03

Model DMT-04
