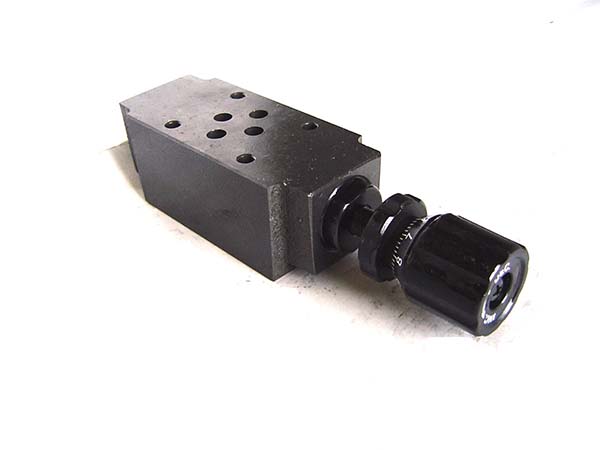

Modular Throttle and Check Valve for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  MSA-03

Feature:

• Modular Throttle and Check Valve is used to control actuator speed and for other flow control valve applications.
• A wide range of modular valves of hydraulic principles are available for A and B port control, A or B port control, and P port control.
• A pressure compensation mechanism ensures that the control flow rate does not change, even when there is pressure fluctuation. hydraulic system examples is available.
• The control flow rate remains stable, even when fluid temperature changes.
• Maximum Operating Pressure: 21, 25MPa {3000, 3571psi}
• The modular adjustable flow control valve functions as a needle valve flow restrictor in one direction in a branch of a circuit, with free flow in the opposite direction. It may be specified to operate on the A, B, or A & B ports in either a “meter-in” or “meter-out” configuration. Adjustment is made with a calibrated knob, standard with the valve.

How to order:

Description of each model code:

Model Number: MSA-03-X-10

	Model Number	Description
1	MS	Series Number Modular Throttle And Check Valves
2	A	Type of Mounting A:A-Line B:B-Line W:AB-Line
3	03	Port Size 02:1/4” 03:3/8” 04:1/2” 06:3/4”
4	X	X:Meter-Out Y:Meter-In
5	10	Design Number

---
