H Type Pressure Control Valve
Home > Pressure control valve > H Type Pressure Control ValveModel HG-03

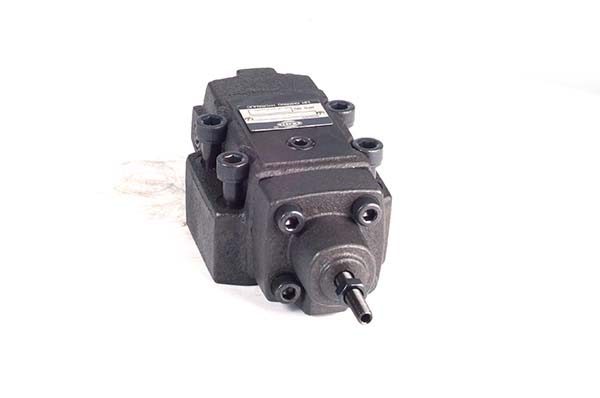

Feature:- Pressure Control Valve is used for acting pilot pressure and drainage, thus, it achieves the features of sequence control, pressure releasing, control counter-balancing control and unloading control.
- hydraulic supplier provides all features are operated by a pressure rise in the circuit, sensed either internally or remotely.All features are operated by a pressure rise in the circuit, sensed either internally or remotely.
- H Type Pressure Control Valve comes without check valves. These valves including various features from various types of valve including sequence, unloading and low pressure relief valves.
- Thread type or Gasket type are available. it is a perfect hydraulic mechanism.
- H Type Pressure Control Valve is pressure control valves directly operated with hydraulic buffer, which can be actuated by internal or external or external pilot pressure. The valves with an integral check valve are also available. These valves can be used in such a case where free reverse flow from the secondary port to primary port is required. There are various type of valves available including sequence, counterbalance, unloading and low pressure relief valves, all of which are operated by a pressure rise in the circuit being sensed either internally or remotely.
- Pressure Control Valve can be used in such a case where free reverse flow from the secondary port to primary port is required.
Description of each model code:
Model Number: HG-03-A1-10
|
Model code |
Descriptions |
1 |
H |
Series Number H Type Pressure Control Valves |
2 |
G |
Type of Mounting T: Thread type G: Gasket type |
3 |
03 |
Port Size 03:3/8” 06:3/4” 10:1-1/4” |
4 |
A |
Pressure Adj. Range A:18-35kgf/cm2 B:35-70kgf/cm2 C:70-140kgf/cm2 |
5 |
1 |
Control Style 1.Internal pilot, internal drain 2.Internal pilot, external drain 3.External pilot, external drain 4.External pilot, internal drain |
6 |
10 |
Design Number |
Specification Table
Model Numbers |
Max. Pressure |
Max. Flow |
Weight kg |
Bolt Size |
||
Thread type |
Gasket type |
kgf/cm2 |
l/min |
HT- |
HG- |
HG- |
HT-03 |
HG-03 |
250 |
50 |
4 |
4.4 |
M10x55x4pcs |
HT-06 |
HG-06 |
125 |
6.5 |
6.6 |
M10x55x4pcs |
|
HT-10 |
HG-10 |
250 |
12.3 |
10.7 |
M10x55x6pcx |
