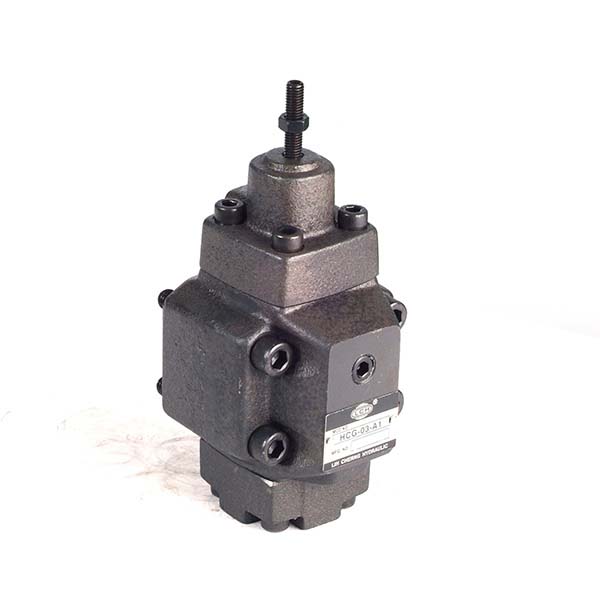

HC type pressure control valve for LCH Precision Technology Co., Ltd

Download Inquiry

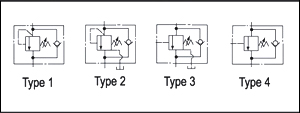

symbol

Feature:

hydraulic fluid valves are designed for hydraulic circuiting needs. It is used for sequence, relief pressure, counter balance and unloading control features by the action of pilot pressure and oil drain.
Come with check valves types for free reverse flow from the secondary port to the primary port.
Thread type or Gasket type are available
These valves are pressure control valves directly operated with hydraulic buffer, which can be actuated by internal or external or external pilot pressure.
Hydraulic Pressure Control Valve with an integral check valve are also available. These valves can be used in such a case where free reverse flow from the secondary port to primary port is required. There are various type of valves available including sequence, counterbalance, unloading and low pressure relief valves, all of which are operated by a pressure rise in the circuit being sensed either internally or remotely.
hydraulic engineering valve are employed to action pilot pressure and drainage, thus for achieving the sequence control, pressure releasing control counter-balancing control and unloading control etc., hyd. circuiting design needs.

How to order:

Description of each model code:

Model Number: HCG-03-A1-10

	Model code	Descriptions
1	HC	Series Number H Type Pressure Control Valves
2	T	Type of Mounting T: Thread type G: Gasket type
3	03	Port Size 03:3/8” 06:3/4” 10:1-1/4”
4	A	Pressure Adj. Range A:18-35kgf/cm² B:35-70kgf/cm² C:70-140kgf/cm²
5	1	Control Style 1.Internal pilot, internal drain 2.Internal pilot, external drain 3.External pilot, external drain 4.External pilot, internal drain
6	10	Design Number

Specification Table

Model HCT-03

Model HCT-06

Model HCT-10

Model HCG-06
