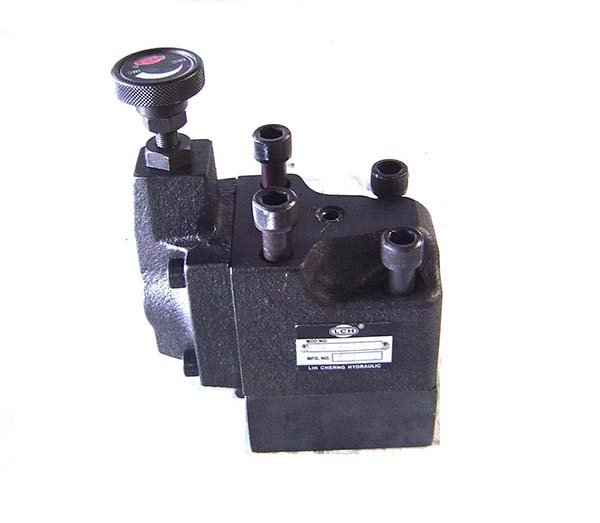

Unloading relief back pressure valve
Home > Pressure control valve > Counterbalance valve BCG URG series > Unloading relief back pressure valve
Model BCG-03
Feature:- hydraulics online valve are used for the pressure reducing valve and could couple with check valve to act adjustable back-pressure control.
- Unloading relief back pressure valves are applied at back-pressure control for plastic injection molding machine & hydraulic pressing machine ect.
- A hydraulic valve properly directs the flow of a liquid medium, usually oil, through your hydraulic system.
- A hydraulic valve can directs the flow of a liquid usually oil through your hydraulic system.
Description of each model code:
Model Number: BCG-03-1-10
|
|
Model code |
Descriptions |
|
1- |
BC |
Series Number Back Pressure Valves |
|
2- |
G |
Type of Mounting G: Gasket type |
|
3- |
03 |
Port Size 03:3/8” 06:3/4” 10:1-1/4” |
|
4- |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2 |
|
5- |
10 |
Design Number |
Specification Table
|
Model Numbers |
Max. Pressure kgf/cm2 |
Pressure Adj. Range kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt Size |
|
BCG-03 |
250
|
1: 7-70, 2:10-140, 3:15-250 |
60 |
7.0 |
M12x110x2pcs |
|
BCG-06 |
200 |
11.2 |
M16x120x2pcs M16x140x2pcs |
||
|
BCHG-10 |
500 |
20.5 |
M20x160x4pcs |
