Feature:

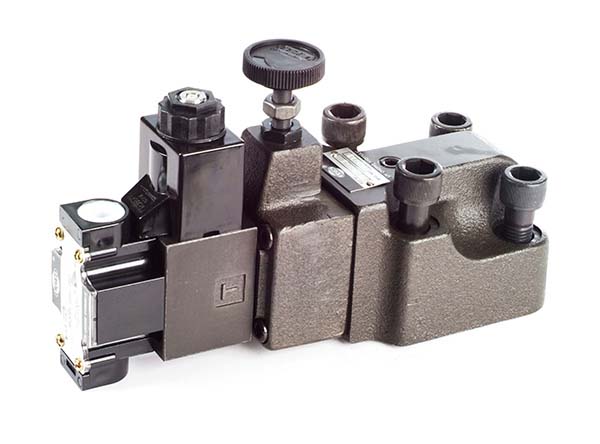

Pressure Control Valve Solenoid Controlled Relief Valve is a combination of relief valve and solenoid valve. Solenoid valve of hydraulic components is directly mounted on the relief valve and connected with the relief valve vent.
Piping between the two valves is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting the pilot relief valve to the solenoid valve ports.
By checking on an electrical signal to the solenoid, or connecting pilot relief valves to the solenoid valve ports could unloaded pump pressure easily.
The structure of this type of Solenoid Control Relief Valve in hydraulic services is simple, and is normally used for general traditional machine.
The direction of the oil flow is determined by the position of a spool.

How to order:

Description of each model code:

Model Number: BSG-06-1-2B2-A1-10

	Model code	Descriptions
1	BS	Series Number Solenoid Controlled Relief Valves
2	G	Type of Mounting T: Thread type G: Gasket type
3	06	Port Size 06:3/4” 10:1-1/4”
4	1	Pressure Adj. Range 1:7-70kgf/cm² 2:10-140kgf/cm² 3:15-250kgf/cm²
5	2B2	Vent Type 2B2 2B2B 2B3A 2B3B
6	A1	Voltage Type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V
7	10	Design Number

Specification Table

Model BST-06

Model BST-10

Model BSG-03

Model SBSG-03
