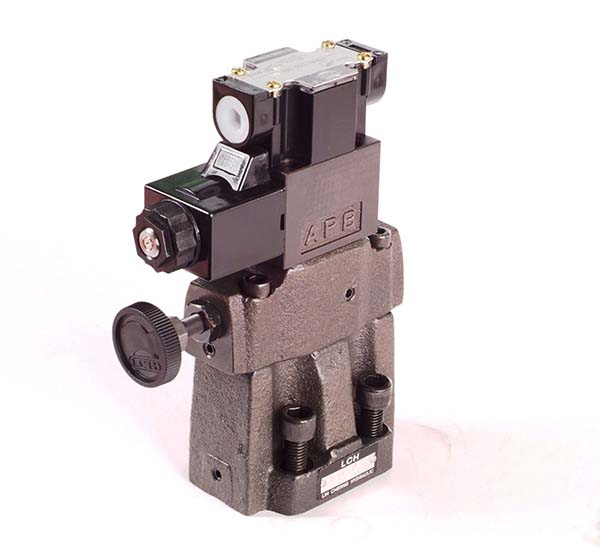

low noise type pilot operated Solenoid Controlled Relief Valve
Home > Pressure control valve
Model SBSG-03
Feature:- low noise type pilot operated Solenoid Controlled Relief Valve is the low-noise solenoid controlled relief valve.
- Solenoid Controlled Relief Valve is a combination of a low noise type pilot operated relief valve and a solenoid operated directional valve.
- Hydraulic parts is used for no-load pump operation by using electric signals or work with a remote control relief valve, for two or three pressure control of the hydraulic system.
- Special designs for hydraulic circuiting system for plastic injection molding machine, which is able to provide low noise and quick response.
- low noise type pilot operated Solenoid Controlled Relief Valve brings the features of meeting strictly pressure & noise level standards, which is mainly customers’ requirement.
- low noise type pilot operated Solenoid Controlled Relief Valve is a combination of relief valve and solenoid valve.
- Piping between the two valves is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting the pilot relief valve to the solenoid valve ports.
Description of each model code:
Model Number: SBSG-03-1-2B2-A1-10
|
|
Model code |
Descriptions |
|
1 |
SBS |
Series Number Solenoid Controlled Relief Valves |
|
2 |
G |
Type of Mounting T: Thread type G: Gasket type |
|
3 |
03 |
Port Size 03:3/8” 06:3/4” |
|
4 |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2 |
|
5 |
2B2 |
Vent Type 2B2 2B2B 2B3A 2B3B |
|
6 |
A1 |
Voltage Type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V |
|
7 |
10 |
Design Number |
Specification Table
|
Model Numbers |
Max. Pressure kgf/cm2 |
Pressure Adj. Range kgf/cm2 |
Max. Flow l/min |
Weight kg |
Bolt Size |
|
SBSG-03 |
250 |
1: 7-70, 2:10-140, 3:15-250, |
100 |
4.8 |
M12x40x4pcs |
|
SBSG-06 |
200 |
6 |
M16x50x4pcs |
