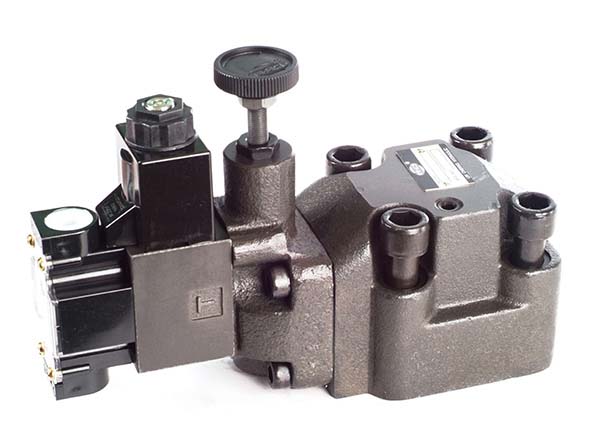

low noise type pilot operated Solenoid Controlled Relief Valve for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  BSHG-06

Feature:

• low noise type pilot operated Solenoid Controlled Relief Valve is a combination of are employed the pressure control valve combine with reach system pressure and the system pressure & unloading reaches the setting by the solenoid valve action for satisfying the system action requirement.
• low noise type pilot operated Solenoid Controlled Relief Valve bring the feature of low noise and large flow rate characters.
• The balanced piston type pressure control valve of hydraulic power pack has reformed by pressures & flows and adjusting closed, stable & sensitive for action.
• The vent can be connected and controlled remotely.
• low noise type pilot operated Solenoid Controlled Relief Valve is a combination of relief valve and solenoid valve.
• Piping between the two valves is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting the pilot relief valve to the solenoid valve ports.

How to order:

Description of each model code:

Model Number: BSHG-06-1-2B2-A1-10

	Model code	Descriptions
1	BSH	Series Number Solenoid Controlled Relief Valves
2	G	Type of Mounting T: Thread type G: Gasket type
3	06	Port Size 06:3/4” 10:1-1/4”
4	1	Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2
5	2B2	Vent Type 2B2 2B2B 2B3A 2B3B
6	A1	Voltage Type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V
7	10	Design Number

---
