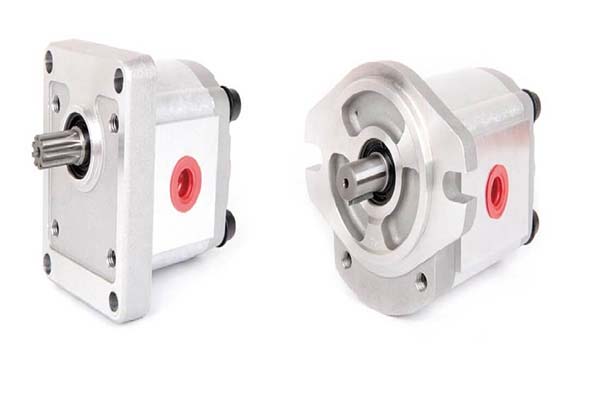

Hydraulic Single Gear Pump for LCH Precision Technology Co., Ltd

Download Inquiry

symbol

Feature:

Pmax: 140kgf/cm²-250kgf/cm²(3500psi)
Qmax:4cc/rev~35cc/rev
Flange Mounting Type:SEA 2-bolt; DIN 4-bolt; European 4-bolt
Shaft type:
- X: Straight Shaft (15.85mm,17.46mm,18mm,19.05mm,20mm)
- Y: Spline Shaft(9T, 10T, 11T, 12T, 15T),
- Z: Taper Shaft (1:5, 1:8).
inlet and outlet option: flange type, G, BSPP PF type, PT type, NPT type and UNF type.

The range of hydraulic gear pump and motors is available in 4 basic frame sizes for flows up to 108lpm and pressure up to 250bar (3500psi) single and multiple units are offered having a variety of shaft, flange and connection options, which fit SAE, European and German standards.
viton o-ring and bck up ring ensure high temperature proof.
internal bearing design of 2500 psi hydraulic pump ensure high pressure capacity,
clockwise, counter-clockwise and reverse rotations are avialable 6.for comprehensive applications, the gear pump can be optionally mounted with catridge relief or lifting valves.
A HGP series gear pump uses the meshing of gears to pump fluid by displacement. They are one of the most common types of pumps for hydraulic fluid power applications.Gear pumps are also widely used in chemical installations to pump high viscosity fluids. There are two main variations; external gear pumps which use two external spur gears, and internal gear pumps which use an external and an internal spur gears (internal spur gear teeth face inwards). Gear pumps are positive displacement (or fixed displacement), meaning they pump a constant amount of fluid for each revolution. Some gear pumps are designed to function as either a motor or a pump. buy hydraulic pump could contact with Lih Cherng Hydraulic Co., Ltd.

How to order:

Description of each model code:

Model Number: HGP-3A-F-13-R-X-2B-10

	Model code	Descriptions
1	HGP	Series Number Single Gear Pumps
2	3A	Group Group 3A
3	F	Mounting F: Flange Type L:Foot Type
4	13	Displacement 4: 4cc/rev 6:6cc/rev 8:8.4cc/rev 11:11cc/rev 13:13cc/rev 14:14.3cc/rev 17:16.5cc/rev 19:19.2cc/rev 23:23cc/rev 25:25cc/rev 28:28cc/rev 30:30cc/rev 33:33cc/rev 35:35cc/rev
5	R	Rotation Directional (Viewed from shaft side) R:Clockwise L:Counter- clockwise
6	X	Shaft Type X: Straight Shaft Y: Spline Shaft Z: Taper Shaft
7	2B	Flange Mounting Type 2B:SAE 2-bolt 4BD:DIN 4-bolt 4BE: European 4-bolt
8	F P G N U	Flange type (F1-F6) PT thread (P1-P2) G, BSPP, PF thread (G1-G2) NPT thread (N1-N2) UNF (U1-U2)
9	10	Design Number

Specification Table

Model HGP-05A Series

Model HGP-1A Series

Model HGP-2A Series

Model HGP-3A2D Series
