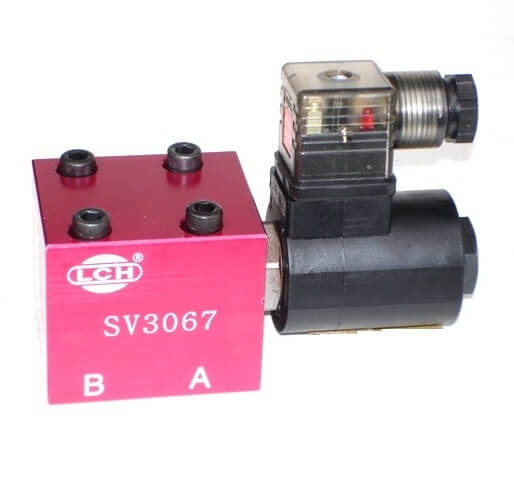

Solenoid Check Valve
Home > Solenoid check valve > Solenoid Check Valve
Model SV-3067
Feature:- Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves. All valves operate a different function in the hydraulic system. Solenoid Check Valve is under directional control valve group.
- Hydraulic valves are available with many different mounting styles: e.g. mounting in pipe lines, with threaded connection as cartridge valves, subplate mounting or flanged mounting. SV2067‧SV3067‧SV6067 is under catridge valve group.
- Hydraulic valves are available in a variety of sizes and according to multiple International Standards which often seen in tractor hydraulic system.
Description of each model code:
Model Number: SV-3067-A22-OM
|
|
Model code |
Descriptions |
|
1- |
SV |
Series Number Solenoid Check Vales |
|
2- |
3067 |
Type 2067 3067 6067 |
|
3- |
A22 |
Coil Type D12:DC12V D24:DC24V A11:AC110V A22:AC220V A38:AC380V (50/60HZ) |
|
4- |
OM |
Option None: Standard OM: With Manual |
Specification Table
|
Model Numbers |
Normally closed-NC Normally Open-NO |
Max Flow l/min |
Max Pressure kgf/cm2 |
Operating Temperature Range |
Weight Kg |
Terminations |
|
SV-2067 |
No / NC |
20 |
210 |
-20℃-120℃ |
0.5 |
DL: Lead wires (2) DG: DIN 43650 |
|
SV-3067 |
NO/ NC |
40 |
0.7 |
DG: DIN 43650 |
||
|
SV-6067 |
NO/ NC |
80 |
1.6 |
DG: DIN 43650 |
