Unloading Relief Valve
Home > Pressure control valve > Unloading Relief Valve BUCG series > Unloading Relief Valve

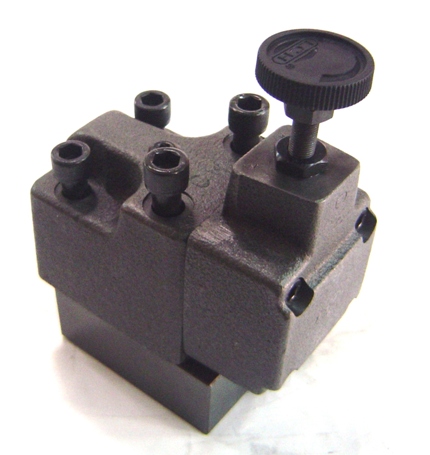

Model BUCG-10
Feature:- To adjust the pressure, loosen the lock nut and turn the pressure adjustment handle slowly clockwise for higher pressures or anti-clockwise for lower pressure. After adjustments, do not forget to tighten the lock nut.
- Take care not to neglect connecting the drain pipe to the tank; otherwise not only will the valve fail to operate properly but also the line pressure will rise infinitely. Extend the end of the drain pipe into fluid.
- Unloading Relief Valve could limit the pressure drop between the valve and the accumulator in an accumulator circuit below 10% of the cut-out pressure.
- Limit the drain pot back pressure below 2% of the cut-out pressure.
- Unloading Relief Valve of hydraulic power are used in a accumulator circuit or hi-low pump circuit to unload the pump by diverting the pump flow into the reservoir at low pressure.
Description of each model code:
Model Number: BUCG-10-1-10
|
|
Model code |
Descriptions |
|
1- |
BUC |
Series Number Unloading Relief Valves |
|
2- |
G |
Type of Mounting G: Gasket type |
|
3- |
10 |
Port Size 03:3/8” 06:3/4” 10:1-1/4” |
|
4- |
1 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2 |
|
5- |
10 |
Design Number |
Specification Table
| Type of Mounting | Max. Pressure kgf/cm2 | Max. Flow l/min | Weight kg |
| Sub-Plate Mounting | 250 | 500 | 20.5 |
