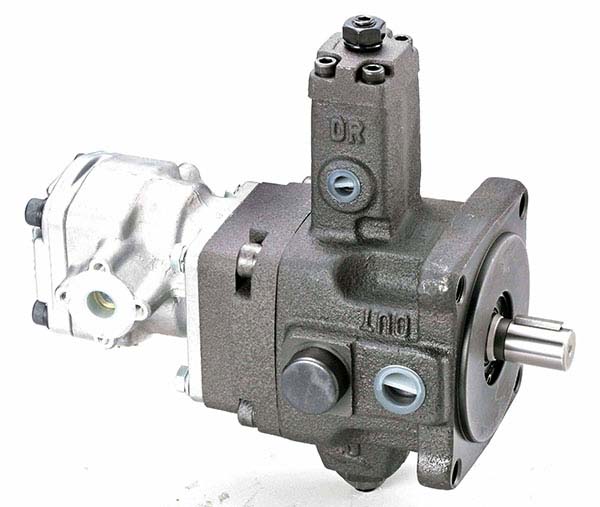

Hydraulic Variable Vane Pump with gear pump for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  VGPE+PA Series

Feature:

• Hydraulic Variable Vane Pump with gear pump offer the system desing engineers a low cost,high working pressure, simple structure, easily maintain and installation.
• Hydraulic Variable Vane Pump with gear pump offer High flow capacity and saving horsepower and small size provide economic space.
• Maximum working pressure 210 kgf/cm2.
• Hydraulic Variable Vane Pump with gear pump provide Low noise level, endurance and hear generated is much less.
• Variable displacement pump and gear pump one are assembled with the same shaft directly.

How to order:

Description of each model code:

Model Number: VGPE-F25A-PA-X

	Model code	Descriptions
1-	VGPE	Series Number Variable Vane Pumps + Gear Pumps
2-	F	Type of Mounting L:Foot Type F:Flange Type
3-	25	Standard delivery (l/min) 25,30,40 (l/min)
4-	A	Pressure Adj. Range A1:8-18kgf/cm2 B:15-35kgf/cm2 C:30-55 kgf/cm2 D:50-70 kgf/cm2
5-	PA	Gear Pump flow rate (l/min) 2, 2.5, 3, 4, 5, 6, 7.5, 9, 10.5, 12 (l/min)
6-	-	Shaft Type: X: Shaft Ø15.875  None: Shaft Ø12.7
