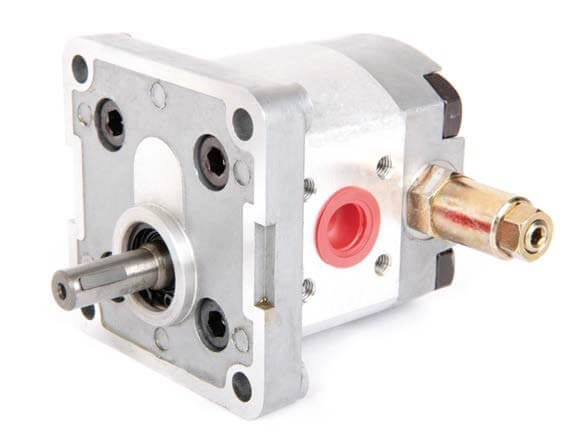

hydraulic gear pump with relief valves for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  PR2 Series

Feature:

• Pressure max:250kgf/cm2
• Displacement max:0.8cc/rev~7.8cc/rev
• Mounting Type: SAE 2-bolt, European & DIN 4- bolt
• above are hydraulic pump function
• hydraulic gear pump with relief valves integrated ranging from 0.8~12cc/rev is available with NPT or BSP Threads as customers' requirement.
• hydraulic pump distributors produce hydraulic gear pump with relief valves can operate at a maximum of 250bar (3500 psi) pressure and also 1800 rpm.
• Furthermore it is available with various Flange and Axle options: SAE 2bolt, DIN 4bolt and European 4 bolt
• shaft type: W: tang shaft, X: Straight shaft, Y: Spline shaft, Z: Taper shaft
• Inlet and outlet: Flange type, G, BSP PF type, PT type, NPT type, and UNF type.
• Adjustable pressure : S1: 5-70kg/fcm²; S2: 40~250kgf/cm²

How to order:

Description of each model code:

Model Number: PR2-008-R-Y1-4BDB-P1-S2

	Model code	Descriptions
1	PR2	Series Number Gear Pump with relief valve
2	008	Displacement 008:0.8cc/rev 010:1cc/rev 020:2cc/rev 030:3cc/rev 040:4cc/rev 050:5cc/rev 060:6cc/rev 080:7.8c/rev
3	R	Rotation Directional (Viewed from shaft side) R:Clockwise  L:Counter- clockwise
4	X	Shaft Type X: Straight Shaft Y: Spline Shaft Z: Taper Shaft
5	2B	2B:SAE 2-bolt 4BDA:DIN 4-bolt (Type A) 4BDB:DIN 4-bolt (Type B) 4BE: European 4-bolt
6	F P G N U	Flange type (F1-F2) PT thread (P1-P2) G, BSP, PF thread (G1-G2) NPT (N1-N2) UNF (U1-U2)

---
