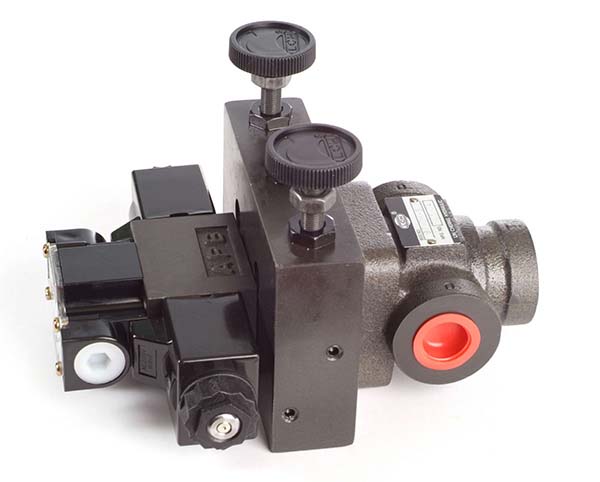

Solenoid Controlled Relief Valve for LCH Precision Technology Co., Ltd

Download Inquiry symbol

Model  BST-06-2P

Feature:

• Solenoid Controlled Relief Valve are employed combine with twin coils and action reach two steps or triple steps pressure.
• Solenoid Controlled Relief Valve is a simple design to against the hydraulic system which needs two steps of triple steps pressure function.
• These valves are a combination of relief valve and solenoid valve.
• Piping between the two valves is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent.
• Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting the pilot relief valve to the solenoid valve ports.
• Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves.
• All valves operate a different function in the hydraulic system

How to order:

Description of each model code:

Model Number: BST-06-2P-1-3C6-A1-10

	Model code	Descriptions
1	BSG	Series Number Solenoid Controlled Relief Valves
2	G	Type of Mounting T: Thread type G: Gasket type
3	06	Port Size 03:3/8” 06:3/4”
4	2P	2P:Duel Pressure Adjusting Ranges 3P:Three Pressure Adjusting Ranges
5	1	Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2
6	3C6	Vent Type 3C3 3C6
7	A1	Voltage Type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V
8	10	Design Number

---
