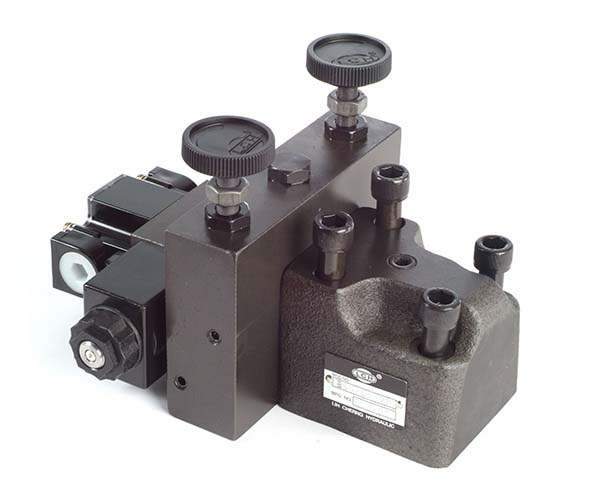

Solenoid Controlled Relief Valve for LCH Precision Technology Co., Ltd

Download Inquiry

symbol

Feature:

Solenoid Controlled Relief Valve are employed combine with twin coils and action reach two steps or triple steps pressure.
hydraulic power is a simple design to against the hydraulic system which needs two steps of triple steps pressure function.
These valves are a combination of relief valve and solenoid valve.
Piping between the two valves is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent.
Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting the pilot relief valve to the solenoid valve ports.
Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves.
All valves operate a different function in the hydraulic system

How to order:

Description of each model code:

Model Number: BSG-03-2P-1-3C6-A1-10

	Model code	Descriptions
1	BS	Series Number Solenoid Controlled Relief Valves
2	G	Type of Mounting T: Thread type G: Gasket type
3	03	Port Size 03:3/8” 06:3/4”
4	2P	2P:Duel Pressure Adjusting Ranges 3P:Three Pressure Adjusting Ranges
5	1	Pressure Adj. Range 1:7-70kgf/cm² 2:10-140kgf/cm² 3:15-250kgf/cm²
6	3C6	Vent Type 3C3 3C6
7	A1	Voltage Type A1:AC110V/60HZ A2:AC220V/60HZ A3:AC380V/50HZ A4: AC110V/50HZ A5:AC220V/50HZ D1:DC12V D2:DC24V
8	10	Design Number

Specification Table

Model BST-06

Model BST-10

Model BSG-03

Model BSG-06
